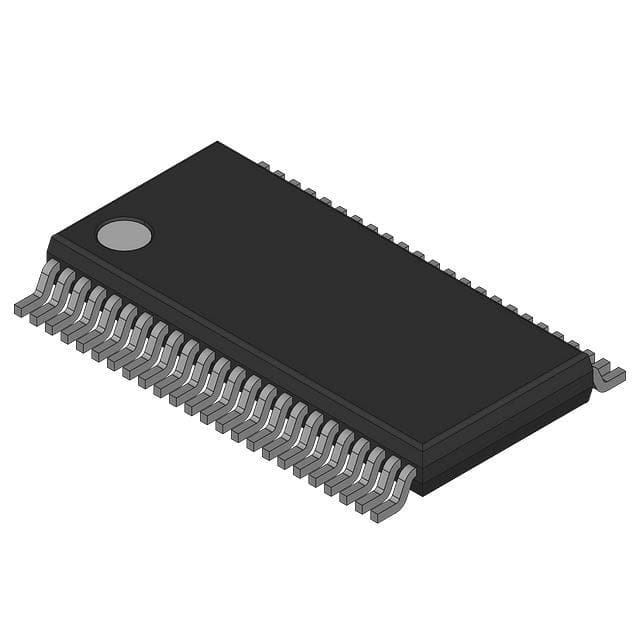

TS3DV421DGVR

SKU: 100110

Manufacturer: Texas Instruments

Analog Multiplexer Quad 2:1 48-Pin TVSOP T/R

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	4
Number of Inputs per Chip	16
Number of Outputs per Chip	8
Chip Enable Signals	No
Maximum Data Rate (Mbps)	3800
Maximum Propagation Delay Bus to Bus (ns)	0.25(Typ)@1.8V
Maximum Turn-On Time (ns)	9@2.1V
Maximum Turn-Off Time (ns)	5@2.1V
Maximum Frequency (25°C) @ Vcc (MHz)	1900(Typ)@1.8V
Input Signal Type	Differential
Output Signal Type	Differential
Minimum Single Supply Voltage (V)	1.5
Typical Single Supply Voltage (V)	1.8
Maximum Single Supply Voltage (V)	2.1
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±1.65
Maximum Dual Supply Voltage (V)	±1.8
Maximum High Level Output Current (mA)	100
Maximum On Resistance (Ohm)	20@1.8V
Maximum On Resistance Range (Ohm)	10 to 25
Propagation Delay Test Condition (pF)	10
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	SOP
Original Package	TVSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.8(Max)
Package Width	4.5(Max)
PCB changed	48
