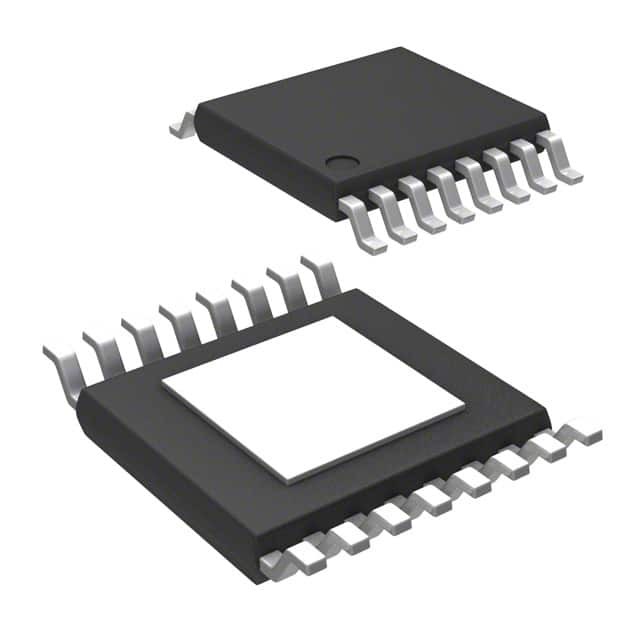

TPS7B7702QPWPRQ1

SKU: 114236

Manufacturer: Texas Instruments

LDO Regulator Pos 1.5V to 20V 0.3A Automotive 16-Pin HTSSOP EP T/R

2470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	LDO
Number of Outputs	2
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	1.5 to 20
Maximum Output Current (A)	0.3
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	40
Maximum Dropout Voltage @ Current (V)	0.5@100mA
Line Regulation	10mV
Load Regulation	20mV
Maximum Quiescent Current (mA)	1
Junction to Ambient	40.3°C/W
Junction to Case	27.7°C/W
Special Features	Reverse Current Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	HTSSOP EP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
