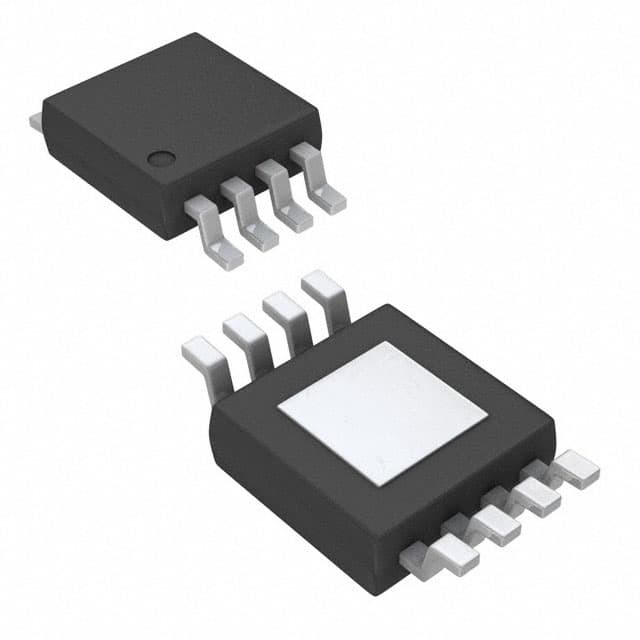

TPS7A4001DGNR

SKU: 64792

Manufacturer: Texas Instruments

LDO Regulator Pos 1.161V to 90V 0.05A Automotive 8-Pin HVSSOP EP T/R

10630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Process Technology	BiCMOS
Output Type	Adjustable
Output Voltage (V)	1.161 to 90
Maximum Output Current (A)	0.05
Minimum Input Voltage (V)	7
Maximum Input Voltage (V)	100
Maximum Dropout Voltage @ Current (V)	1.3@50mA
Reference Voltage (V)	1.185
Line Regulation	0.03%Vo(Typ)
Load Regulation	0.31%Vo(Typ)
Typical Ground Current @ Full Load (mA)	0.025
Maximum Power Dissipation (mW)	1830
Junction to Ambient	55.9°C/W
Junction to Case	8.47°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	HVSSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
