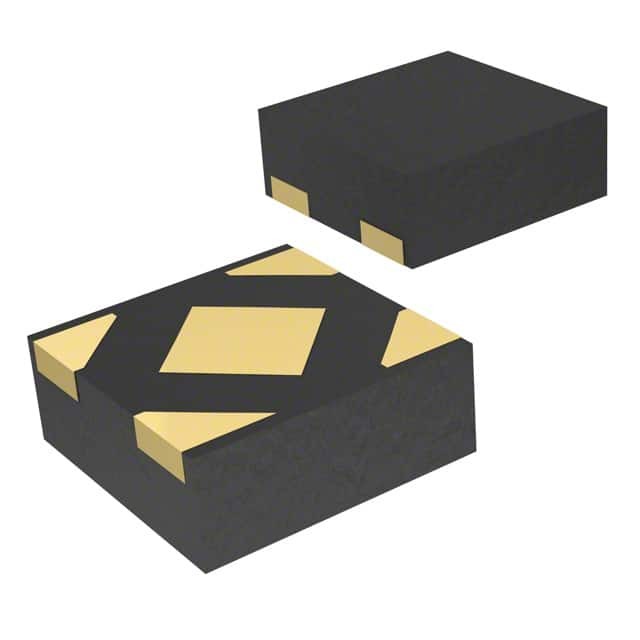

TPS7A0333PDQNR

SKU: 59673

Manufacturer: Texas Instruments

LDO Regulator Pos 3.3V 0.2A 4-Pin X2SON EP T/R

3610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.2
Minimum Input Voltage (V)	1.5
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.27@200mA
Line Regulation	5mV
Load Regulation	20mV(Typ)
Junction to Ambient	179.1°C/W
Junction to Case	137.6°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	X2SON EP
Pin Count	4
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.35(Max)
Package Length	1.05(Max)
Package Width	1.05(Max)
PCB changed	4
