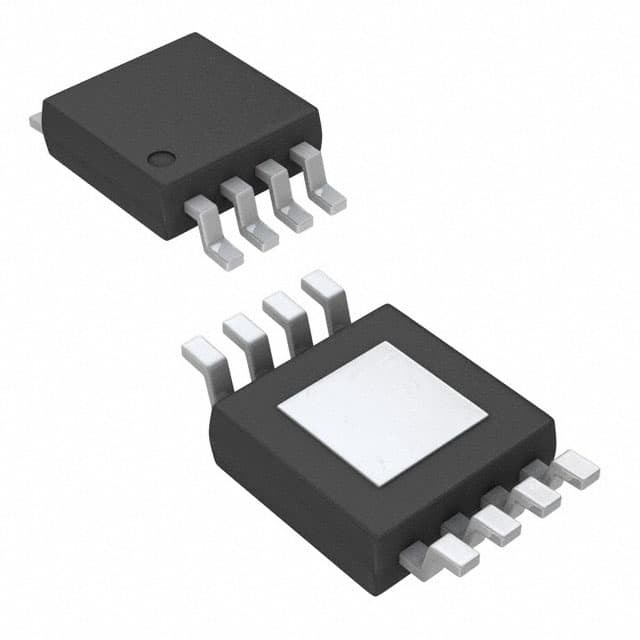

TPS79801QDGNRQ1

SKU: 142678

Manufacturer: Texas Instruments

LDO Regulator Pos 1.275V to 28V 0.05A Automotive 8-Pin HVSSOP EP T/R

7030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±3
Output Type	Adjustable
Output Voltage (V)	1.275 to 28
Maximum Output Current (A)	0.05
Minimum Input Voltage (V)	-65
Maximum Input Voltage (V)	80
Maximum Dropout Voltage @ Current (V)	0.15@1mA
Reference Voltage (V)	1.275
Line Regulation	13mV
Load Regulation	20mV
Maximum Power Dissipation (mW)	1830
Junction to Ambient	60°C/W
Junction to Case	8.2°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	HVSSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
