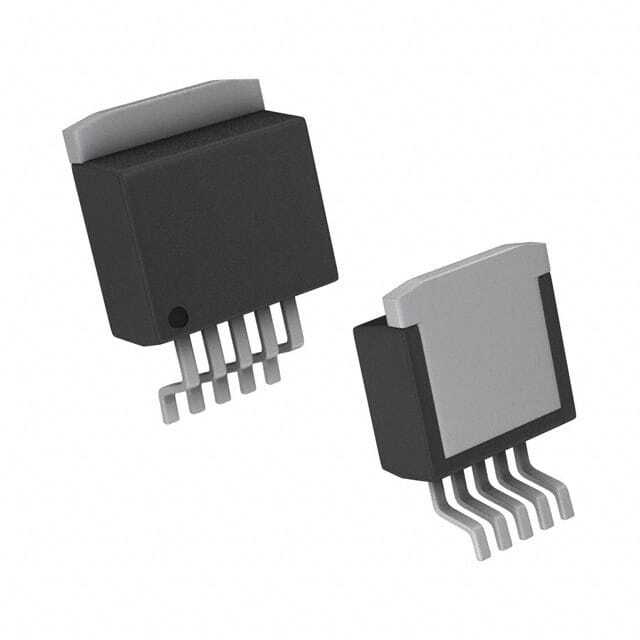

TPS79601KTTR

SKU: 36519

Manufacturer: Texas Instruments

LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin(5+Tab) DDPAK T/R

17550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	1.2 to 5.5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5.5
Reference Voltage (V)	1.225(Typ)
Line Regulation	0.05%/V(Typ)
Load Regulation	5mV(Typ)
Typical Ground Current @ Full Load (mA)	0.265
Junction to Ambient	25°C/W
Junction to Case	35°C/W
Special Features	Excellent Line and Load Transient Response
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	DDPAK
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	5
Tab	Tab
