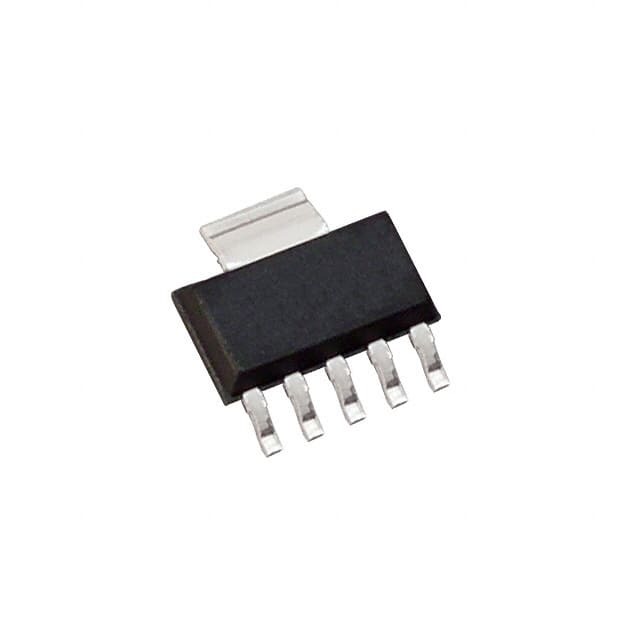

TPS79501DCQ

SKU: 64788

Manufacturer: Texas Instruments

LDO Regulator Pos 1.2V to 5.5V 0.5A 6-Pin(5+Tab) SOT-223 Tube

4670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±3
Output Type	Adjustable
Output Voltage (V)	1.2 to 5.5
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5.5
Reference Voltage (V)	1.225(Typ)
Line Regulation	0.05%/V(Typ)
Load Regulation	3mV(Typ)
Junction to Ambient	70.4°C/W
Junction to Case	70°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	SOT-223
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	6.55(Max)
Package Width	3.55(Max)
PCB changed	5
Tab	Tab
