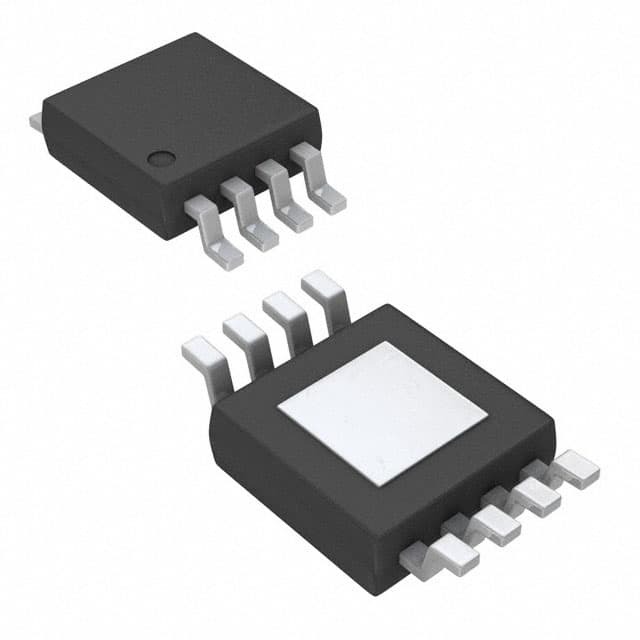

TPS79401DGNR

SKU: 156838

Manufacturer: Texas Instruments

LDO Regulator Pos 1.2V to 5.5V 0.25A 8-Pin HVSSOP EP T/R

1270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±3
Output Type	Adjustable
Output Voltage (V)	1.2 to 5.5
Maximum Output Current (A)	0.25
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5.5
Reference Voltage (V)	1.2246(Typ)
Line Regulation	0.05%/V(Typ)
Load Regulation	10mV(Typ)
Maximum Quiescent Current (mA)	0.22
Maximum Power Dissipation (mW)	2600
Junction to Ambient	55.09°C/W
Junction to Case	8.47°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	HVSSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
