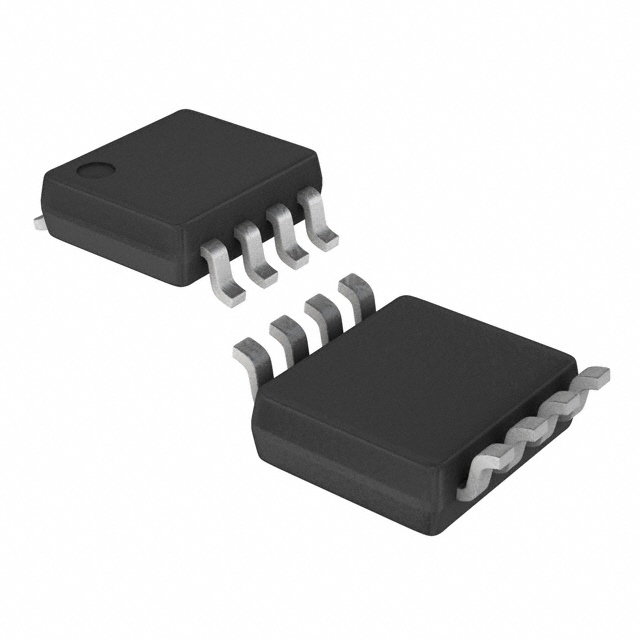

TPS77901DGKR

SKU: 135541

Manufacturer: Texas Instruments

LDO Regulator Pos 1.5V to 5.5V 0.25A 8-Pin VSSOP T/R

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	1.5 to 5.5
Maximum Output Current (A)	0.25
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	10
Reference Voltage (V)	1.1834(Typ)
Line Regulation	0.005%/V(Typ)
Load Regulation	1mV(Typ)
Maximum Quiescent Current (mA)	0.125
Maximum Power Dissipation (mW)	412
Junction to Ambient	266.2°C/W
Junction to Case	4.21°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	VSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
