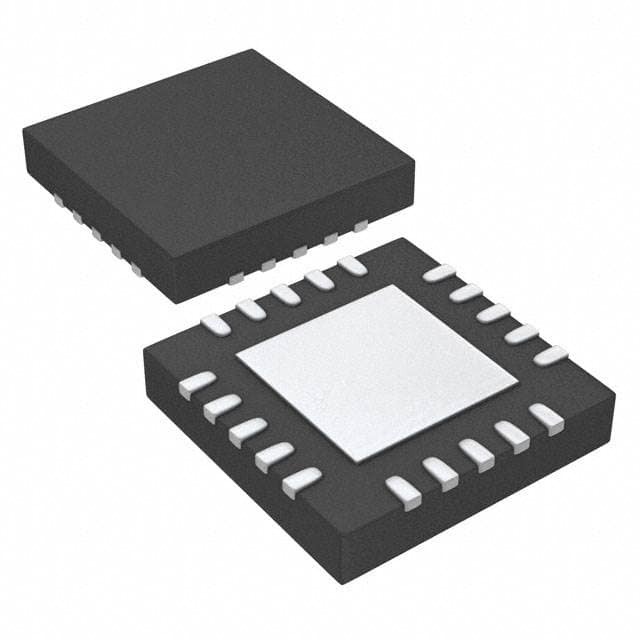

TPS74901RGWR

SKU: 142671

Manufacturer: Texas Instruments

LDO Regulator Pos 0.798V to 3.6V 3A 20-Pin VQFN EP T/R

108280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.5(Typ)
Output Type	Adjustable
Output Voltage (V)	0.798 to 3.6
Maximum Output Current (A)	3
Minimum Input Voltage (V)	0.8
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.28@3A
Reference Voltage (V)	0.806
Line Regulation	0.03%/V(Typ)
Load Regulation	0.09%/A(Typ)
Junction to Ambient	36.5°C/W
Junction to Case	4.05°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	VQFN EP
Pin Count	20
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.15(Max)
Package Width	5.15(Max)
PCB changed	20
