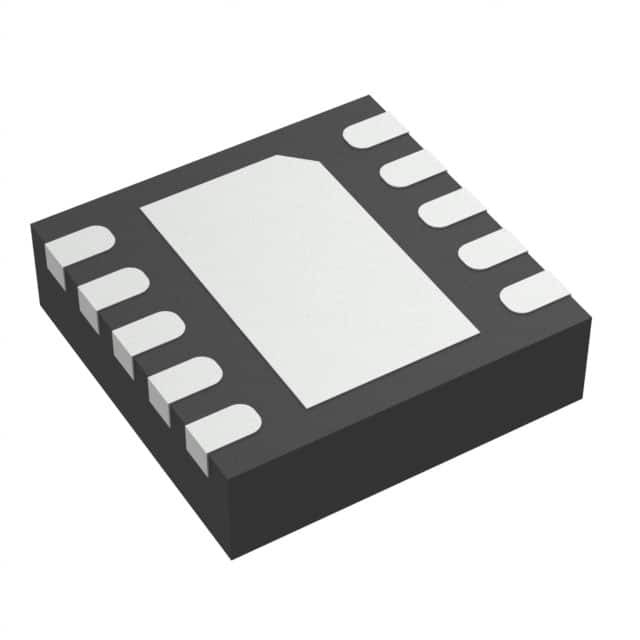

TPS63002DRCR

SKU: 100049

Manufacturer: Texas Instruments

Conv DC-DC 1.8V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 5V 1.2A 10-Pin VSON EP T/R

27640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Up
Output Type	Fixed
Switching Frequency (kHz)	1500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	5
Maximum Output Current (A)	1.2
Minimum Input Voltage (V)	1.8
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	1.8 to 5.5
Typical Quiescent Current (uA)	40
Line Regulation	0.5%
Load Regulation	0.5%
Efficiency (%)	96
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SON
Original Package	VSON EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
