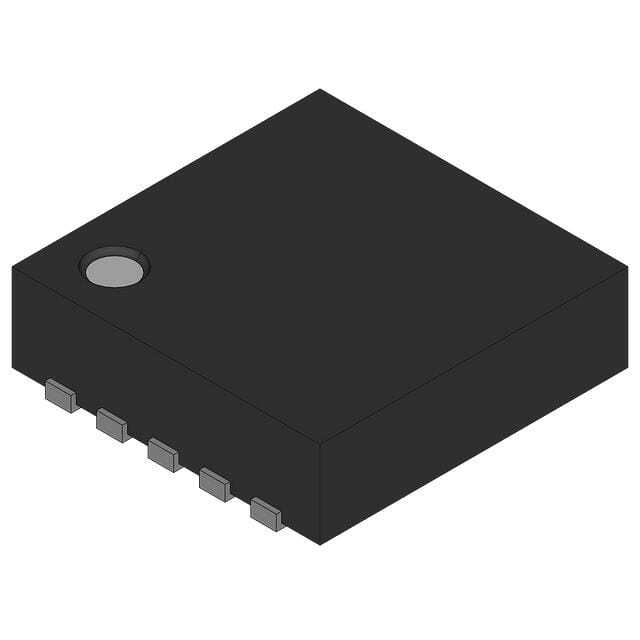

TPS61202DSCR

SKU: 78801

Manufacturer: Texas Instruments

Conv DC-DC 0.3V to 5.5V Synchronous Step Up Single-Out 5V 0.6A 10-Pin WSON EP T/R

460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Up
Output Type	Fixed
Switching Frequency (kHz)	1650
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	5
Maximum Output Current (A)	0.6
Minimum Input Voltage (V)	0.3
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	0.3 to 5.5
Typical Quiescent Current (uA)	50
Line Regulation	0.1%(Typ)
Load Regulation	0.1%(Typ)
Efficiency (%)	90(Typ)
Maximum ESD Protection Voltage (kV)	1.5@CDM/4@HBM/0.2@MM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SON
Original Package	WSON EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3.15(Max)
Package Width	3.15(Max)
PCB changed	10
