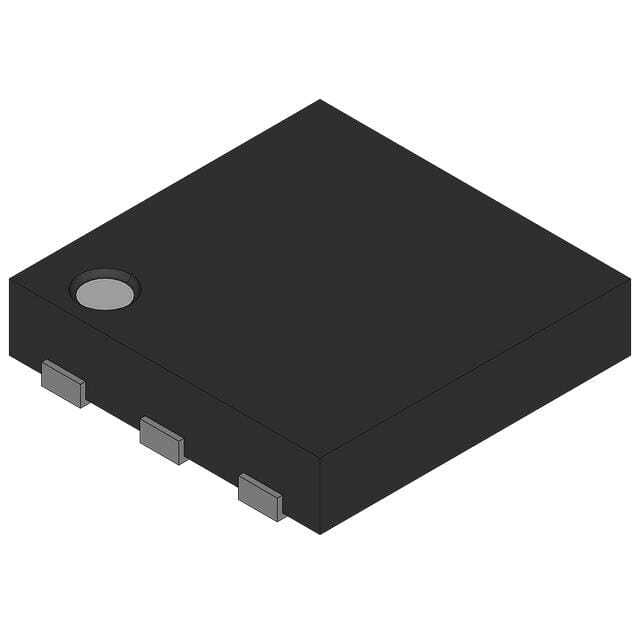

TPS61160DRVR Texas Instruments

TPS61160DRVR

SKU: 22233

Manufacturer: Texas Instruments

LED Driver 10 Segment 6-Pin WSON EP T/R

Request Free Samples

28830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of Segments	10
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	18
Typical Operating Supply Voltage (V)	15
Output Voltage (V)	2.7 to 38
Low Level Output Current (uA)	100(Typ)
High Level Output Current (uA)	100(Typ)
Maximum Power Dissipation (mW)	1540
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SON
Pin Count	6
Original Package	WSON EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	2.1(Max)
Package Width	2.1(Max)
PCB changed	6
