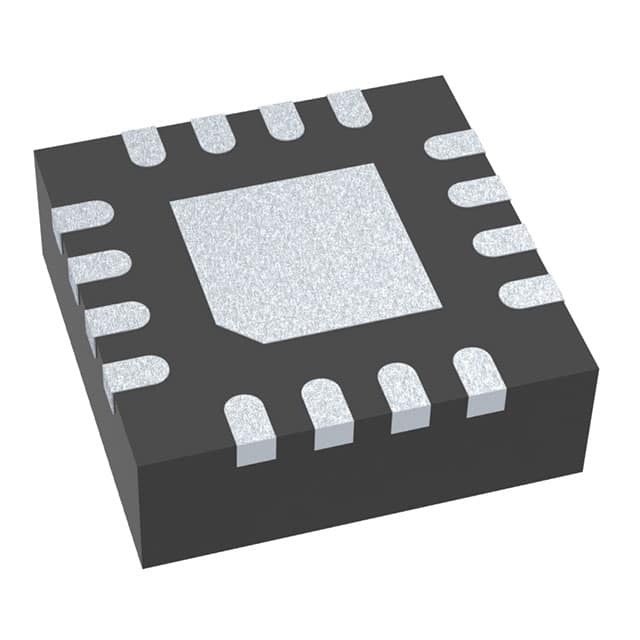

TPS60230RGTR

SKU: 71784

Manufacturer: Texas Instruments

Charge Pump STPUP 5.5V 125mA 16-Pin VQFN EP T/R

122770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Step Up
Output Type	Fixed
Output Voltage (V)	5.5
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	6.5
Maximum Power Dissipation (mW)	1900
Output Current (mA)	125(Min)
Switching Frequency (kHz)	1250
Efficiency (%)	83(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.15(Max)
Package Width	3.15(Max)
PCB changed	16
