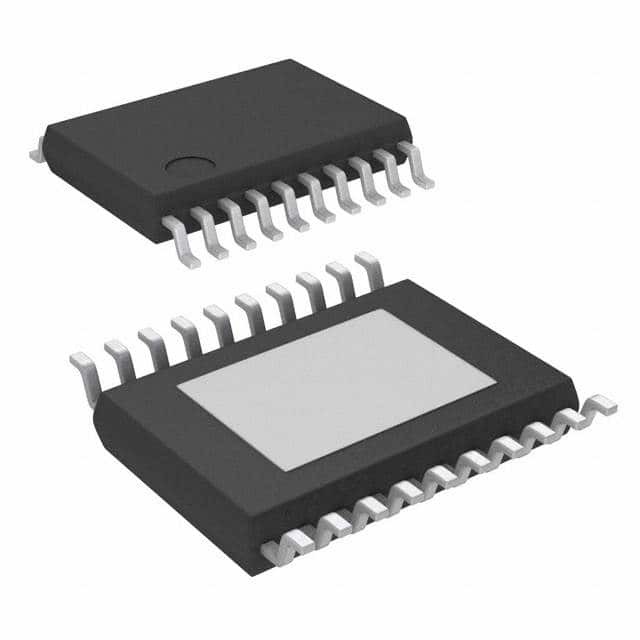

TPS60110PWP

SKU: 43546

Manufacturer: Texas Instruments

Charge Pump STPUP 5V 300mA 20-Pin HTSSOP EP Tube

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Step Up
Output Type	Fixed
Output Voltage (V)	5
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	5.4
Maximum Power Dissipation (mW)	3000
Output Current (mA)	300(Max)
Switching Frequency (kHz)	400
Efficiency (%)	80(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
