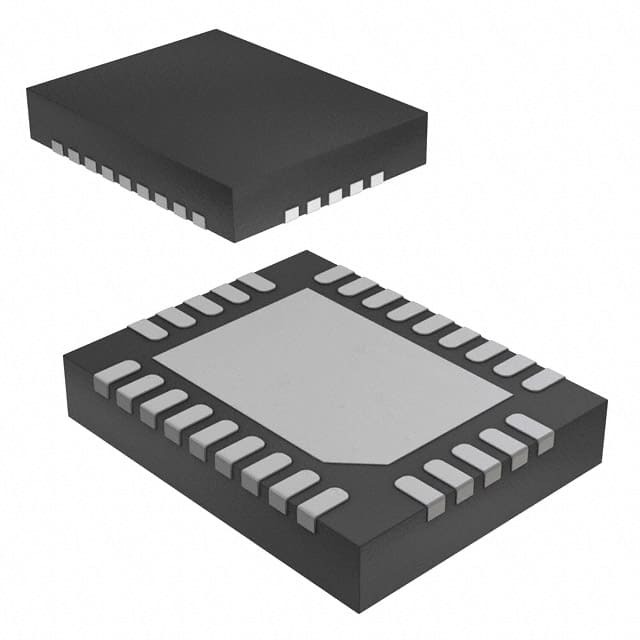

TPS548A20RVER

SKU: 64730

Manufacturer: Texas Instruments

Conv DC-DC 1.5V to 20V Synchronous Step Down Single-Out 0.6V to 5.5V 15A 28-Pin VQFN EP T/R

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	200 to 1000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 5.5
Maximum Output Current (A)	15
Minimum Input Voltage (V)	1.5
Maximum Input Voltage (V)	20
Operating Supply Voltage (V)	4.5 to 25
Typical Switch Current (A)	15
Typical Quiescent Current (uA)	1350
Line Regulation	0.2%(Typ)
Load Regulation	0.5%(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	VQFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.6(Max)
Package Width	3.6(Max)
PCB changed	28
