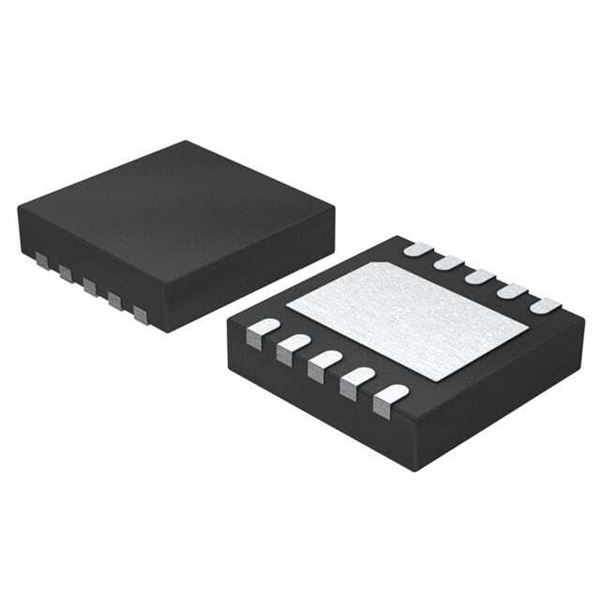

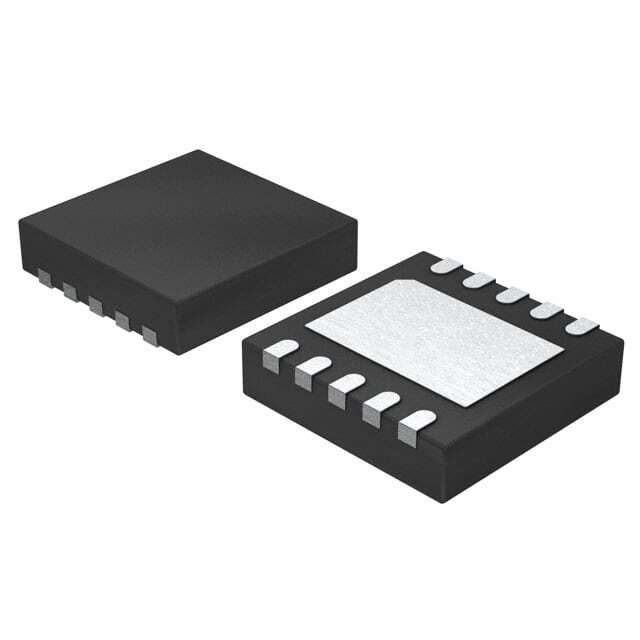

TPS54561DPRR

SKU: 38304

Manufacturer: Texas Instruments

Conv DC-DC 4.5V to 60V Step Down Single-Out 0.8V to 59V 5A 10-Pin WSON EP T/R

14250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.80
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	100 to 2500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 59
Maximum Output Current (A)	5
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	60
Operating Supply Voltage (V)	4.5 to 60
Typical Switch Current (A)	7.5
Typical Quiescent Current (uA)	152
Maximum ESD Protection Voltage (kV)	0.5@CDM/2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SON
Original Package	WSON EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	10
