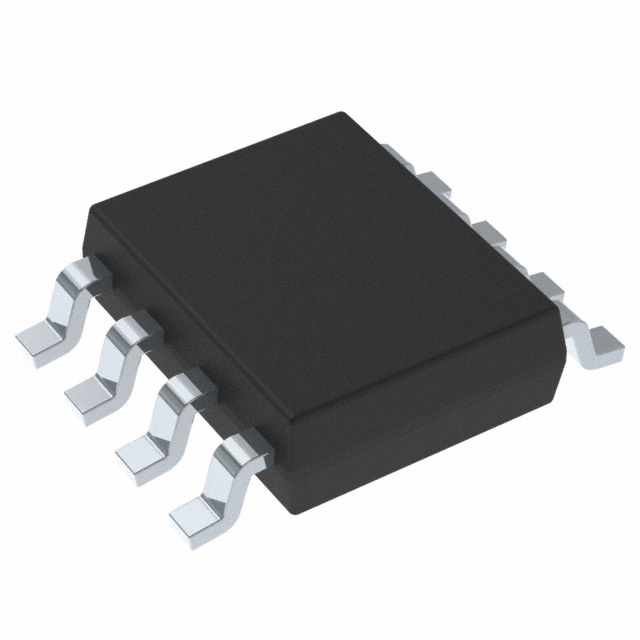

TPS5450DDA

SKU: 29369

Manufacturer: Texas Instruments

Conv DC-DC 5.5V to 36V Step Down Single-Out 1.22V to 31V 5A 8-Pin HSOIC EP Tube

700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	600
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.22 to 31
Maximum Output Current (A)	5
Minimum Input Voltage (V)	5.5
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	5.5 to 36
Typical Quiescent Current (uA)	3000
Efficiency (%)	90(Min)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	HSOIC EP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
