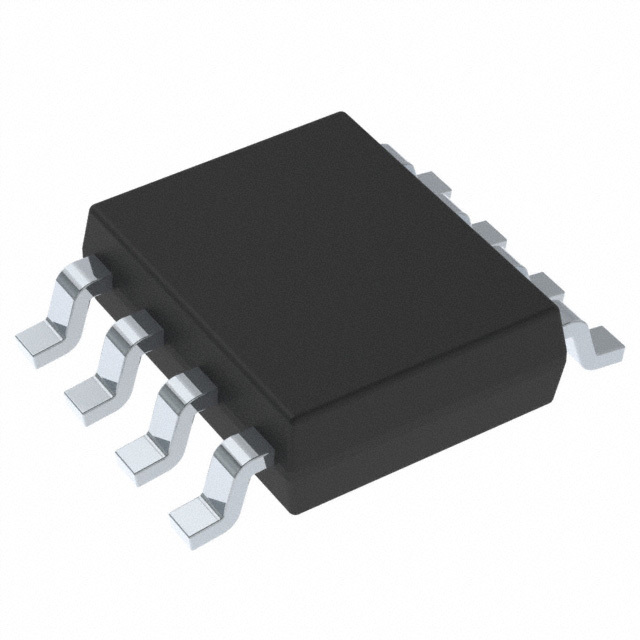

TPS54329DDA

SKU: 57779

Manufacturer: Texas Instruments

Conv DC-DC 4.5V to 18V Synchronous Step Down Single-Out 0.76V to 7V 3A 8-Pin HSOIC EP Tube

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	650
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.76 to 7
Maximum Output Current (A)	3
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	18
Operating Supply Voltage (V)	4.5 to 18
Typical Switch Current (A)	4.2
Typical Quiescent Current (uA)	800
Line Regulation	25mV
Load Regulation	100mV
Maximum ESD Protection Voltage (kV)	0.5@CDM/2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	HSOIC EP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
