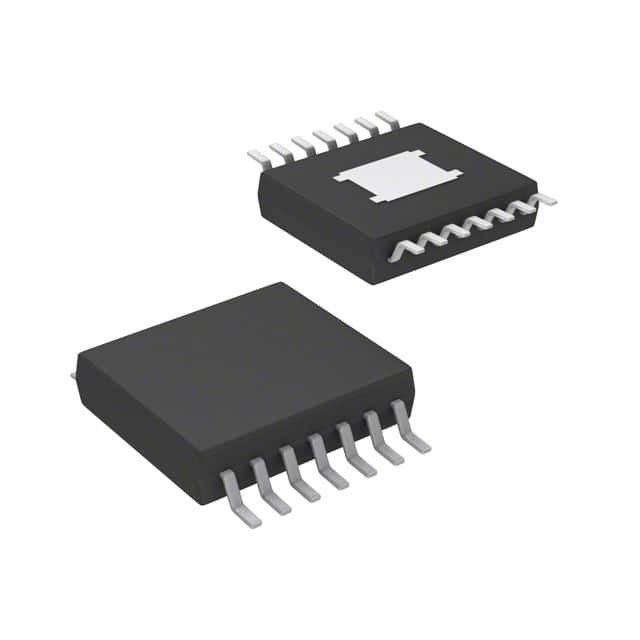

TPS54325PWPR

SKU: 36465

Manufacturer: Texas Instruments

Conv DC-DC 2V to 18V Synchronous Step Down Single-Out 0.76V to 5.5V 3A 14-Pin HTSSOP EP T/R

101560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	700(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.76 to 5.5
Maximum Output Current (A)	3
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	18
Operating Supply Voltage (V)	4.5 to 18
Typical Switch Current (A)	4.1
Typical Quiescent Current (uA)	850
Line Regulation	20mV
Load Regulation	100mV
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
