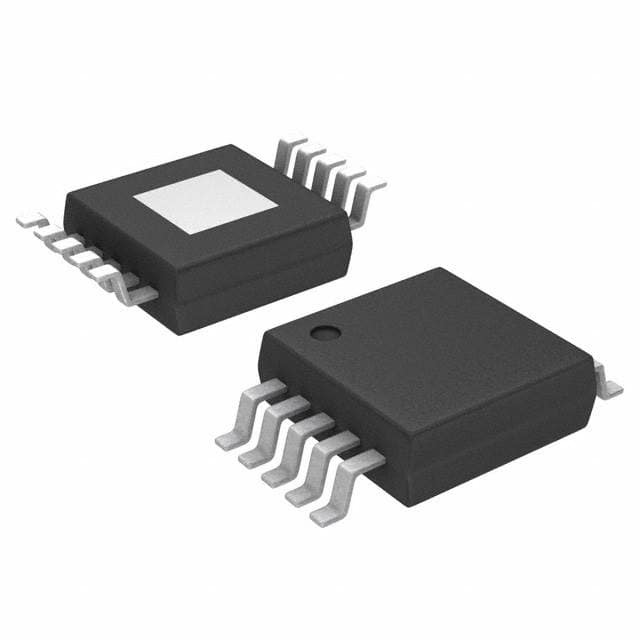

TPS54260DGQR

SKU: 85906

Manufacturer: Texas Instruments

Conv DC-DC 3.5V to 60V Synchronous Step Down Single-Out 0.8V to 58V 2.5A 10-Pin HVSSOP EP T/R

190290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	2500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 58
Maximum Output Current (A)	2.5
Minimum Input Voltage (V)	3.5
Maximum Input Voltage (V)	60
Operating Supply Voltage (V)	3.5 to 60
Typical Switch Current (A)	6.1
Typical Quiescent Current (uA)	138
Maximum ESD Protection Voltage (kV)	0.5@CDM/2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
