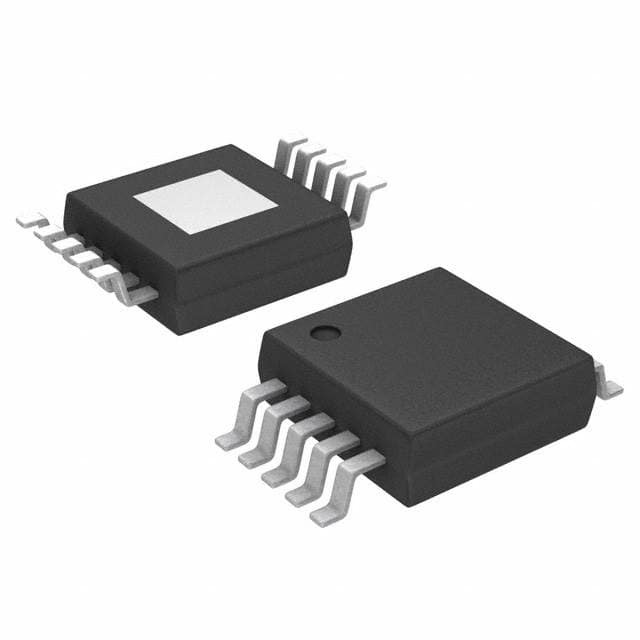

TPS54140ADGQ

SKU: 151491

Manufacturer: Texas Instruments

Conv DC-DC 3.5V to 42V Synchronous Step Down Single-Out 0.8V to 39V 1.5A 10-Pin HVSSOP EP Tube

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	100 to 2500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 39
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	3.5
Maximum Input Voltage (V)	42
Typical Quiescent Current (uA)	116
Maximum ESD Protection Voltage (kV)	0.5@CDM/1@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	10
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
