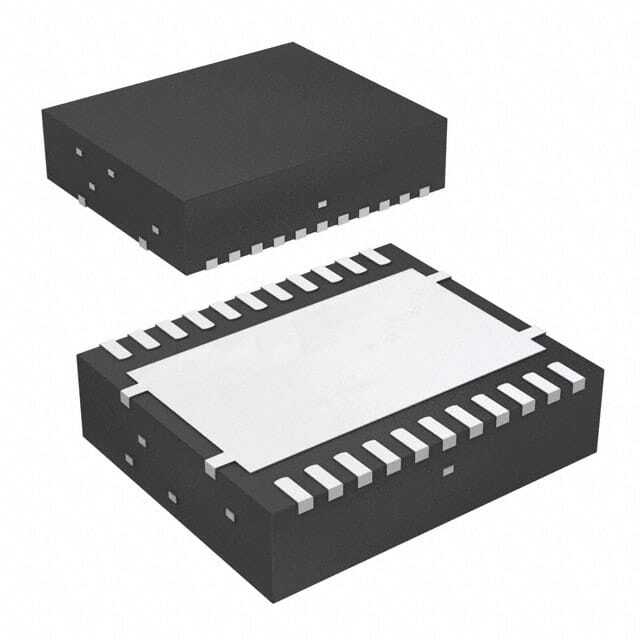

TPS53355DQPR

SKU: 85905

Manufacturer: Texas Instruments

Conv DC-DC 1.5V to 15V Synchronous Step Down Single-Out 0.6V to 5.5V 30A 22-Pin LSON-CLIP EP T/R

82230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	250 to 1000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 5.5
Maximum Output Current (A)	30
Minimum Input Voltage (V)	1.5
Maximum Input Voltage (V)	15
Operating Supply Voltage (V)	4.5 to 25
Typical Quiescent Current (uA)	320
Efficiency (%)	96
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	LSON-CLIP EP
Pin Count	22
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	6.1(Max)
Package Width	5.1(Max)
