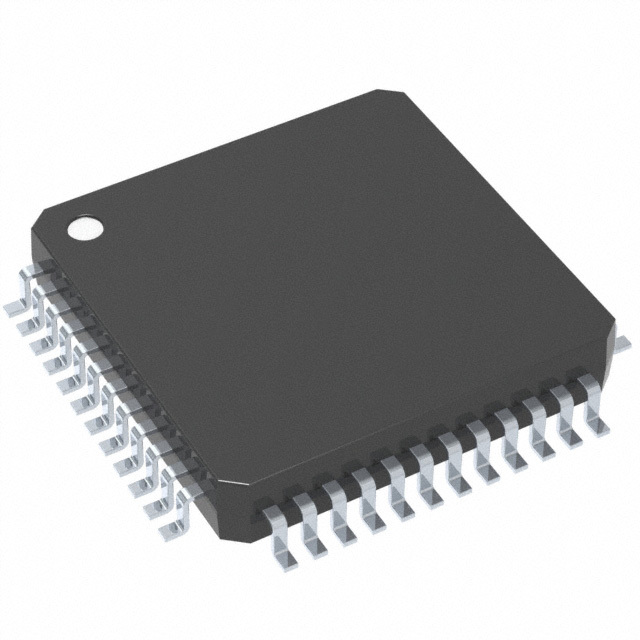

TPS5130PT

SKU: 107090

Manufacturer: Texas Instruments

DC/DC Cntrlr Quad-OUT Step Down 15A 500kHz 48-Pin LQFP Tray

880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	4
Topology	Step Down
Output Voltage (V)	0.9 to 5.5
Maximum Output Current (A)	15
Maximum Switching Frequency (kHz)	500
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	28
Operating Supply Voltage (V)	4.5 to 28
Maximum Supply Current (mA)	3
Typical Quiescent Current (mA)	2
Maximum Power Dissipation (mW)	3210
Typical Switching Frequency (kHz)	300
Synchronous Rectifier	Yes
Synchronous Clock	No
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	48
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	7.2(Max)
Package Width	7.2(Max)
PCB changed	48
