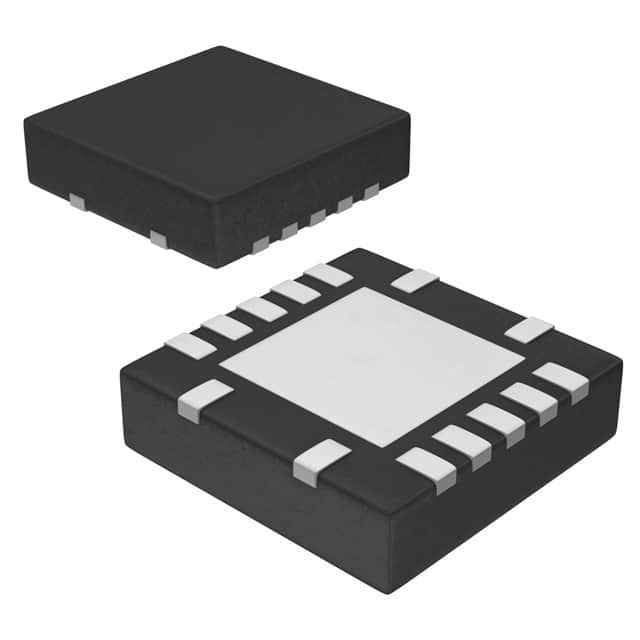

TPS51117RGYR

SKU: 43539

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down 10A 550kHz 14-Pin VQFN EP T/R

51870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.75 to 5.5
Maximum Output Current (A)	10
Maximum Switching Frequency (kHz)	550
Minimum Input Voltage (V)	1.8
Maximum Input Voltage (V)	28
Operating Supply Voltage (V)	4.5 to 5.5
Maximum Supply Current (mA)	0.75
Typical Quiescent Current (mA)	0.4
Minimum Switching Frequency (kHz)	100
Synchronous Rectifier	Yes
Synchronous Clock	No
Control Method	PWM
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.65(Max)
Package Width	3.65(Max)
PCB changed	14
