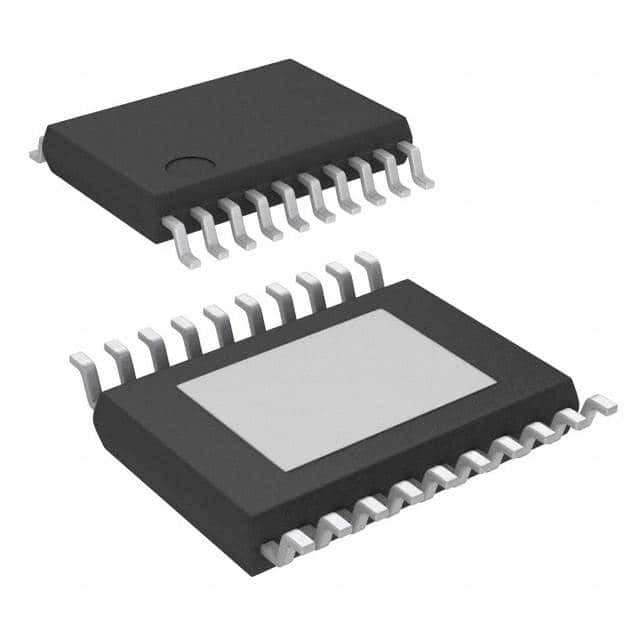

TPS51116PWP

SKU: 92912

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down 10A 400kHz 20-Pin HTSSOP EP Tube

720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	1.5 to 3
Maximum Output Current (A)	10
Maximum Switching Frequency (kHz)	400
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	28
Operating Supply Voltage (V)	4.75 to 5.25
Maximum Supply Current (mA)	2
Typical Quiescent Current (mA)	0.8
Maximum Power Dissipation (mW)	2530
Synchronous Rectifier	Yes
Synchronous Clock	No
Control Method	PWM
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
