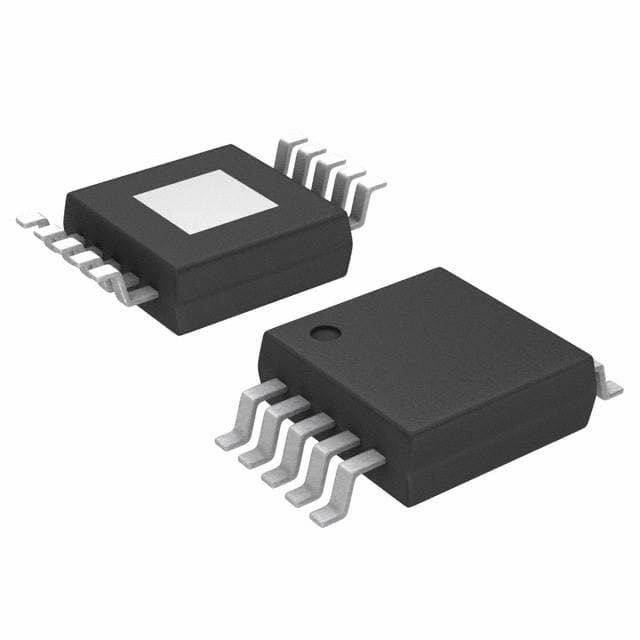

TPS40211DGQR

SKU: 50705

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP T/R

24390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	5 to 300
Maximum Switching Frequency (kHz)	1000
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	52
Operating Supply Voltage (V)	4.5 to 52
Maximum Supply Current (mA)	2.5
Minimum Switching Frequency (kHz)	35
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
