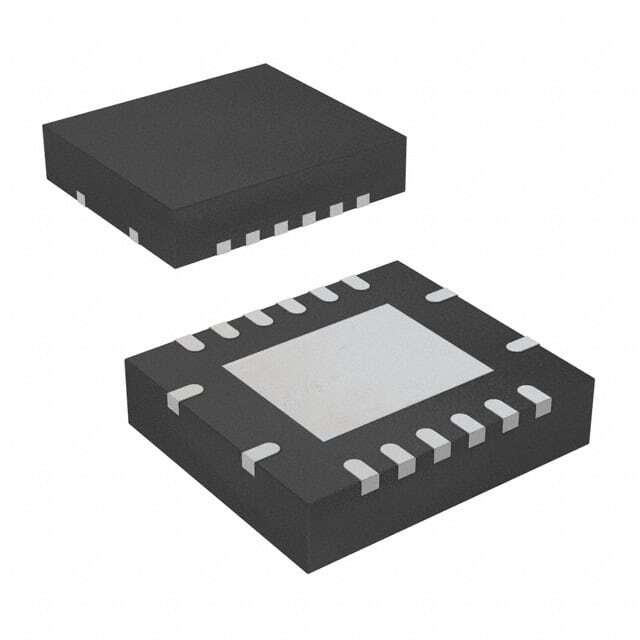

TPS40195RGYR

SKU: 36456

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down 600kHz 16-Pin VQFN EP T/R

3960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.591 to 17
Maximum Output Current (A)	20
Maximum Switching Frequency (kHz)	600
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	20
Operating Supply Voltage (V)	4.5 to 20
Maximum Supply Current (mA)	4
Typical Quiescent Current (mA)	4
Typical Gate Driver Pull Up Resistance (Ohm)	2.5/3
Typical Gate Driver Pull Down Resistance (Ohm)	0.8/1.5
Maximum Power Dissipation (mW)	2600
Minimum Switching Frequency (kHz)	100
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.15(Max)
Package Width	3.65(Max)
PCB changed	16
