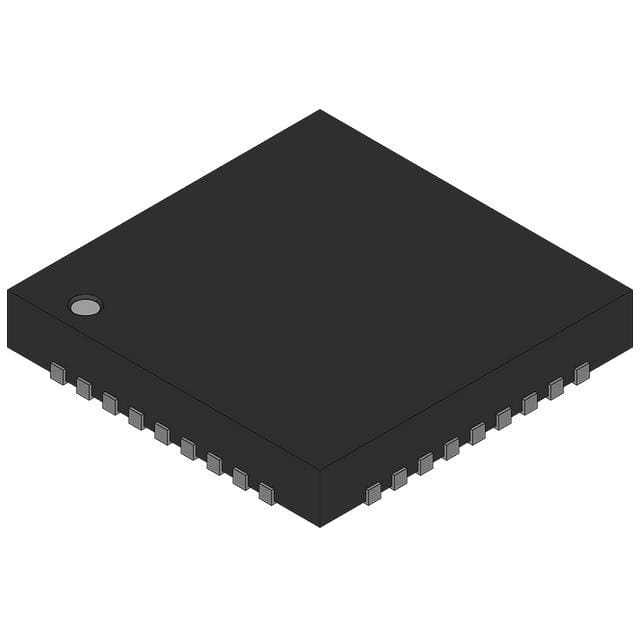

TPS40140RHHR

SKU: 100018

Manufacturer: Texas Instruments

DC/DC Cntrlr Dual-OUT Step Down 25A/25A 1000kHz 36-Pin VQFN EP T/R

37050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	2
Topology	Step Down
Output Voltage (V)	0.7 to 5.8
Maximum Output Current (A)	25
Maximum Switching Frequency (kHz)	1000
Minimum Input Voltage (V)	1
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	4.5 to 15
Maximum Power Dissipation (mW)	2000
Minimum Switching Frequency (kHz)	150
Typical Switching Frequency (kHz)	300
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	36
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	6.1(Max)
Package Width	6.1(Max)
PCB changed	36
