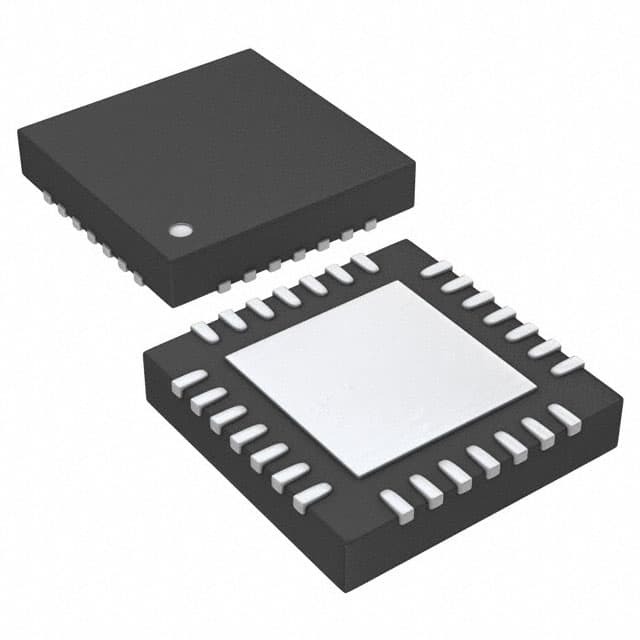

TPS40090RHDR

SKU: 78788

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down 1000kHz 28-Pin VQFN EP T/R

60 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.7 to 3.3
Maximum Output Current (A)	120
Maximum Switching Frequency (kHz)	1000
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	15
Operating Supply Voltage (V)	4.5 to 15
Typical Quiescent Current (mA)	4
Typical Gate Driver Pull Up Resistance (Ohm)	27
Typical Gate Driver Pull Down Resistance (Ohm)	27
Minimum Switching Frequency (kHz)	100
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	28
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.15(Max)
Package Width	5.15(Max)
PCB changed	28
