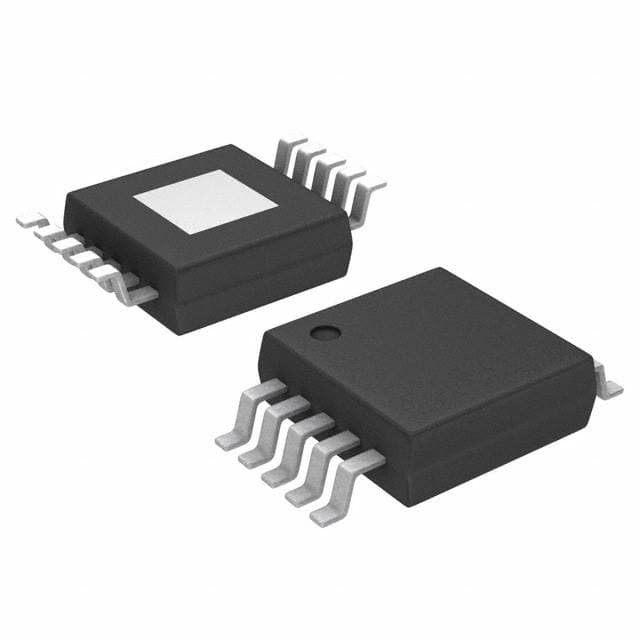

TPS40004DGQR

SKU: 15237

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down 350kHz 10-Pin HVSSOP EP T/R

5340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.7 to 4
Maximum Output Current (A)	15
Maximum Switching Frequency (kHz)	350
Minimum Input Voltage (V)	2.25
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.25 to 5.5
Maximum Supply Current (mA)	4
Typical Quiescent Current (mA)	1.4
Typical Gate Driver Pull Up Resistance (Ohm)	3/3
Typical Gate Driver Pull Down Resistance (Ohm)	1/1.5
Minimum Switching Frequency (kHz)	250
Typical Switching Frequency (kHz)	300
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
