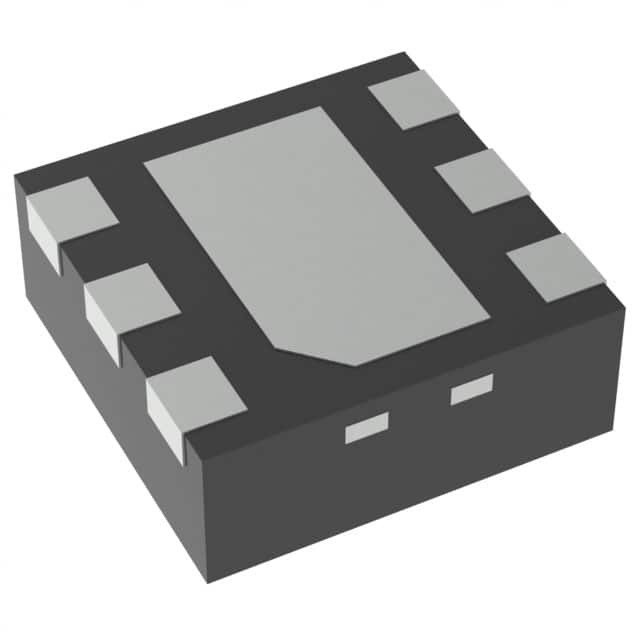

TPS3808G25DRVT

SKU: 36448

Manufacturer: Texas Instruments

Processor Supervisor 2.33V 1 Active Low/Open Drain 6-Pin WSON EP T/R

3310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	1200(Typ)
Output Driver	Active Low/Open Drain
Minimum Reset Threshold Voltage (V)	2.3183
Typical Reset Threshold Voltage (V)	2.33
Maximum Reset Threshold Voltage (V)	2.341
Monitored Voltage (V)	0.4 to 5
Operating Supply Voltage-Min (V)	1.65
Operating Supply Voltage-Max (V)	6.5
Maximum Supply Current (uA)	2.7(Typ)
Power Fail Detection	No
Watchdog Timer	No
Manual Reset	Yes
Chip Enable Signals	No
Battery Backup Switching	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Type	Voltage Supervisory
Pin Count	6
Standard Package Method	SON
Original Package	WSON EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	2.1(Max)
Package Width	2.1(Max)
PCB changed	6
