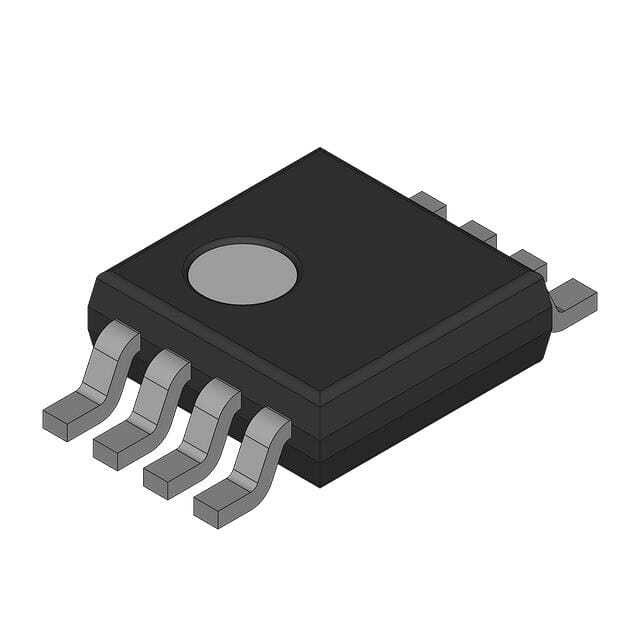

TPS2511DGN

SKU: 38297

Manufacturer: Texas Instruments

USB Charging Port Controller Single 5.5V 0.25A to 2.7A 8-Pin HVSSOP EP Tube

870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	USB Charging Port Controller
Number of Switches	1
Current Limit (A)	0.25 to 2.7
Enable Logic	Active High
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	5.5
Switch On Resistance (mOhm)	70
Typical UVLO Threshold (V)	4.1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Typical Turn-On Delay Time (us)	5000(Max)
Typical Turn-Off Delay Time (us)	3000(Max)
Typical Rise Time (us)	1500(Max)
Typical Fall Time (us)	500(Max)
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
