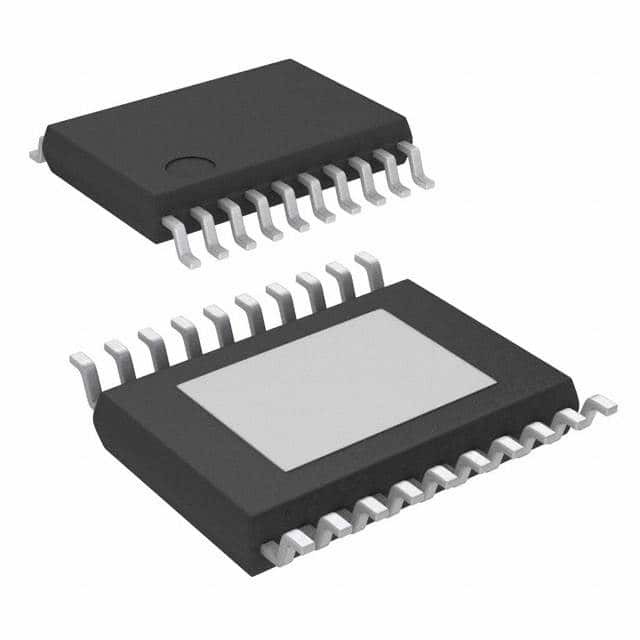

TPS23750PWPR

SKU: 156761

Manufacturer: Texas Instruments

Power Over Ethernet PD Controller 0V 67V 20-Pin HTSSOP EP

11000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	PD Controller
Standard Supported	IEEE802.3af
Minimum Input Voltage (V)	0
Maximum Input Voltage (V)	67
UVLO Turn-On Threshold (V)	39.3
UVLO Turn-Off Threshold (V)	30.5
Maximum Current Limit (mA)	515
Typical Inrush Current (mA)	140
Maximum Oscillating Frequency (Hz)	565000
Maximum Duty Cycle (%)	49.5
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
