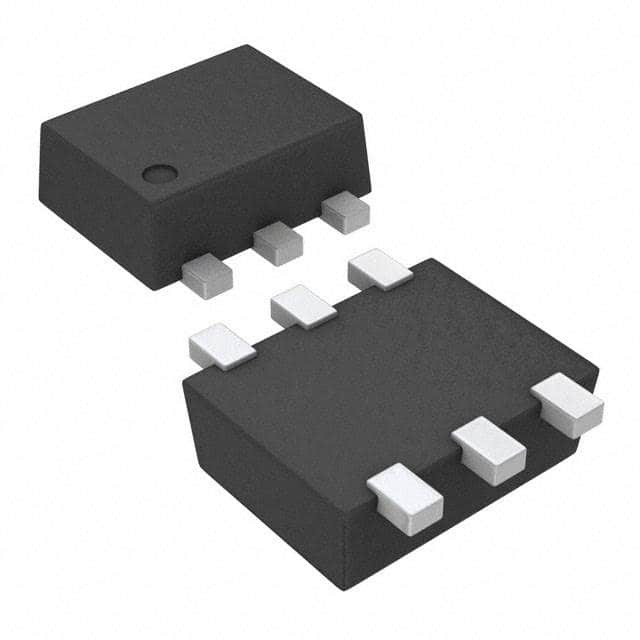

TPD4E001DRLR

SKU: 43497

Manufacturer: Texas Instruments

ESD Suppressor Diode Diode Array Uni-Dir 5.5V 6-Pin SOT-563 T/R

152640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Diode Array
Configuration	Quad
Direction Type	Uni-Directional
Number of Elements per pcs	4
Maximum Working Voltage (V)	5.5
Minimum Breakdown Voltage (V)	11
Maximum Clamping Voltage (V)	105.5
Maximum Peak Pulse Current (A)	5.5@8/20us
Maximum Leakage Current (uA)	0.001
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	100@8/20us
Capacitance Value (pF)	1.5(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Fail Safe Protection	Yes
Pin Count	6
Standard Package Method	SOT
Original Package	SOT-563
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	1.7(Max)
Package Width	1.3(Max)
PCB changed	6
