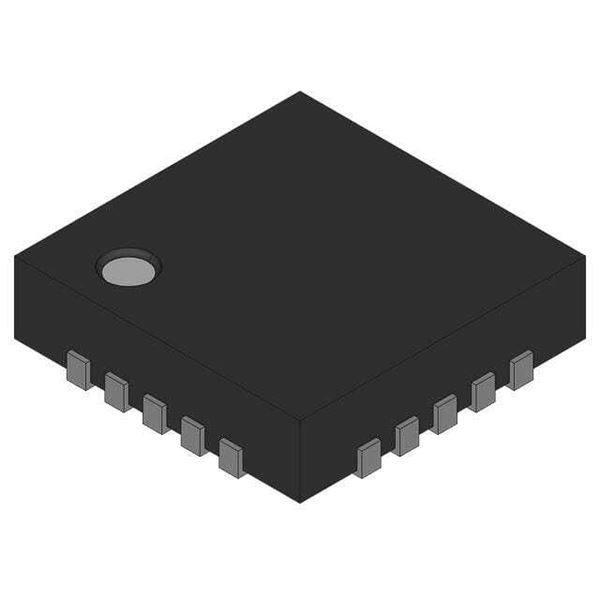

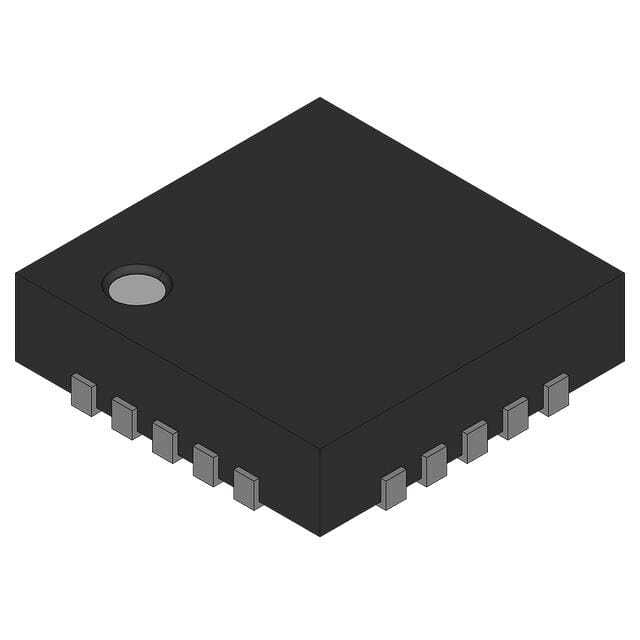

TPA6130A2RTJR

SKU: 142575

Manufacturer: Texas Instruments

Audio Amp Headphone/Speaker 1-CH Mono/2-CH Stereo 0.29W Class-AB 20-Pin WQFN EP T/R

34960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Headphone/Speaker
Amplifier Type	Class-AB
THDN	0.0055%@16Ohm@35mW
Output Signal Type	Differential
Output Type	1-Channel Mono
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	6@5.5V
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	0.29x1@16Ohm
Maximum Power Dissipation (mW)	4100
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	QFN
Original Package	WQFN EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	20
