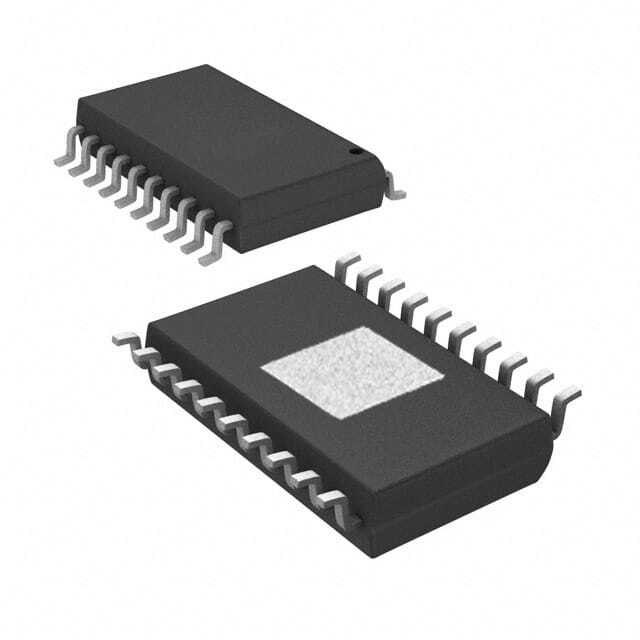

TPA6120A2DWP

SKU: 142576

Manufacturer: Texas Instruments

Audio Amp Headphone 2-CH Stereo Class-AB 20-Pin HSOIC EP Tube

890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Headphone
Amplifier Type	Class-AB
THDN	0.00012%@600Ohm@125mW
Output Signal Type	Single
Output Type	2-Channel Stereo
Maximum Output Current (mA)	1400(Typ)
Maximum Input Offset Voltage (mV)	5@±5V
Minimum Single Supply Voltage (V)	10
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±15
Maximum Supply Current (mA)	26@±5V
Power Supply Type	Single
Maximum Output Power x Channels @ Load (W)	1.5x2
Maximum Power Dissipation (mW)	2800
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	HSOIC EP
Terminal Form	Surface Mount
Package Height	2.5(Max)
Package Length	12.95(Max)
Package Width	7.59(Max)
PCB changed	20
