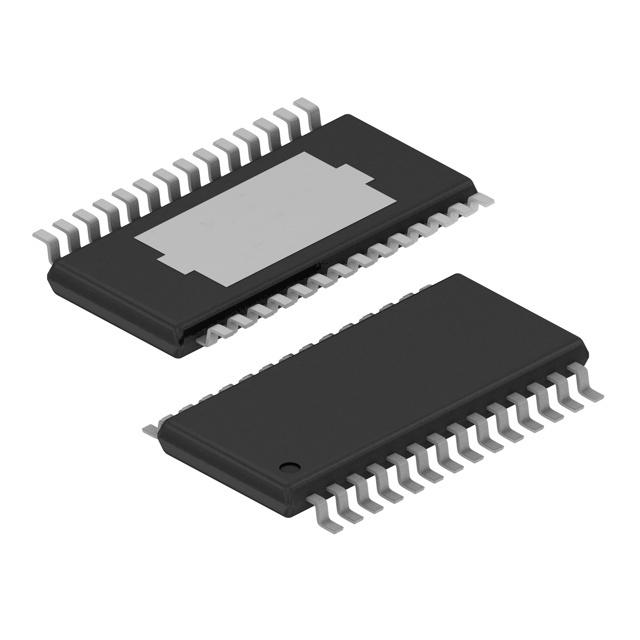

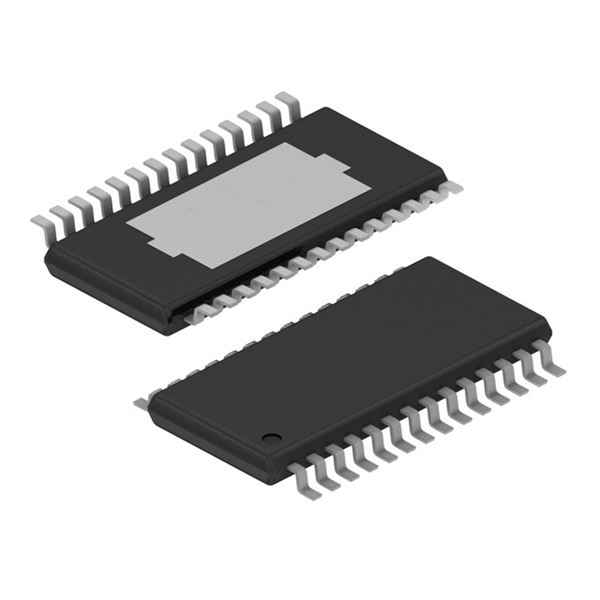

TPA3136AD2PWP

SKU: 99983

Manufacturer: Texas Instruments

Audio Amp Speaker 1-CH Mono/2-CH Stereo 10W Class-D 28-Pin HTSSOP EP Tube

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.06%@5W@6Ohm
Output Signal Type	Differential
Output Type	1-Channel Mono
Maximum Input Offset Voltage (mV)	15@12V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	14.4
Maximum Quiescent Current (mA)	40@12V
Minimum Load Resistance (Ohm)	4
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	10x2@8Ohm
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	HTSSOP EP
Pin Count	28
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.8(Max)
Package Width	4.5(Max)
PCB changed	28
