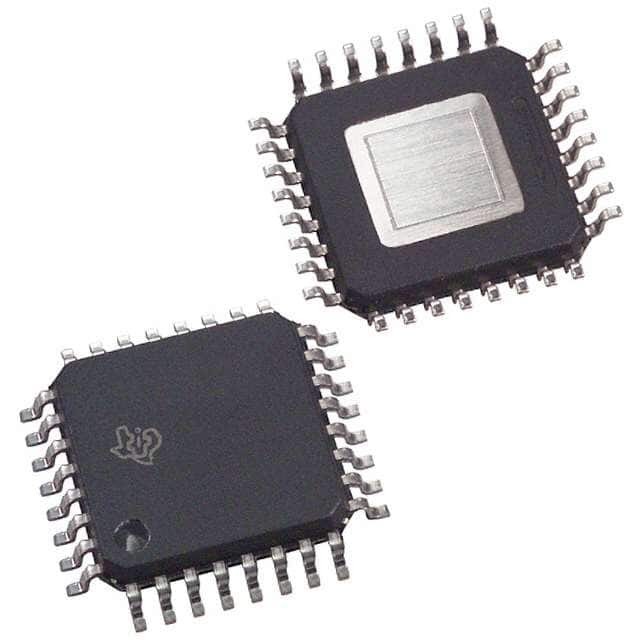

TPA3106D1VFP

SKU: 43492

Manufacturer: Texas Instruments

Audio Amp Speaker 1-CH Mono 40W Class-D 32-Pin HLQFP EP Tray

3560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.2%@8Ohm@20W
Output Signal Type	Differential
Output Type	1-Channel Mono
Minimum Single Supply Voltage (V)	10
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	26
Maximum Quiescent Current (mA)	17@24V
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	40x1@8Ohm
Maximum Power Dissipation (mW)	3570
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	32
Standard Package Method	QFP
Original Package	HLQFP EP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	7
Package Width	7
PCB changed	32
