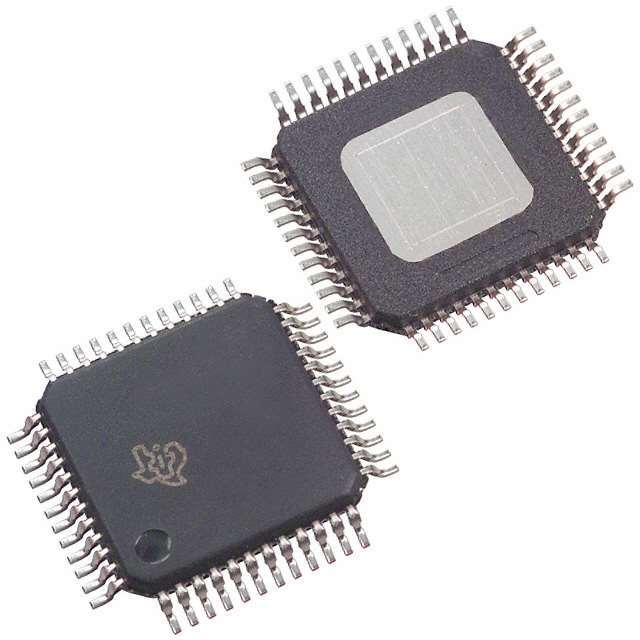

TPA3004D2PHPR

SKU: 36399

Manufacturer: Texas Instruments

Audio Amp Speaker 2-CH Stereo 12W Class-D 48-Pin HTQFP EP T/R

14280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.025%@32Ohm@6mW
Output Signal Type	Single
Output Type	2-Channel Stereo
Minimum Single Supply Voltage (V)	8.5
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	18
Maximum Supply Current (mA)	28.5@12V
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	12x2@8Ohm
Maximum Power Dissipation (mW)	4300
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	QFP
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.2(Max)
Package Width	7.2(Max)
PCB changed	48
