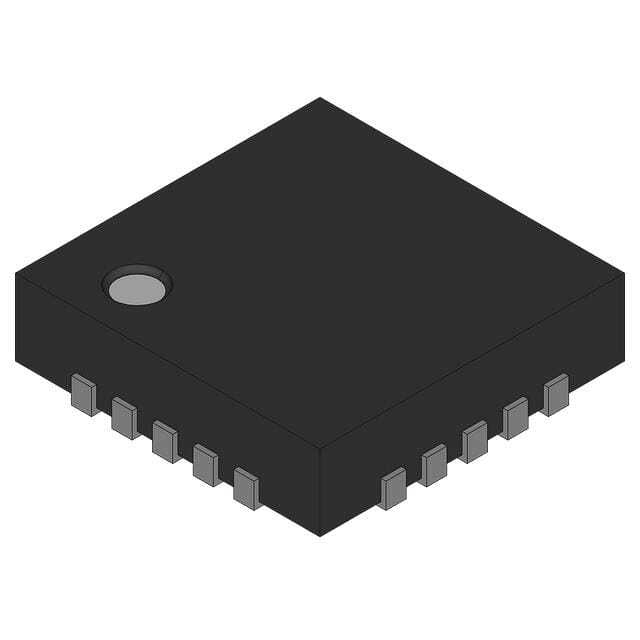

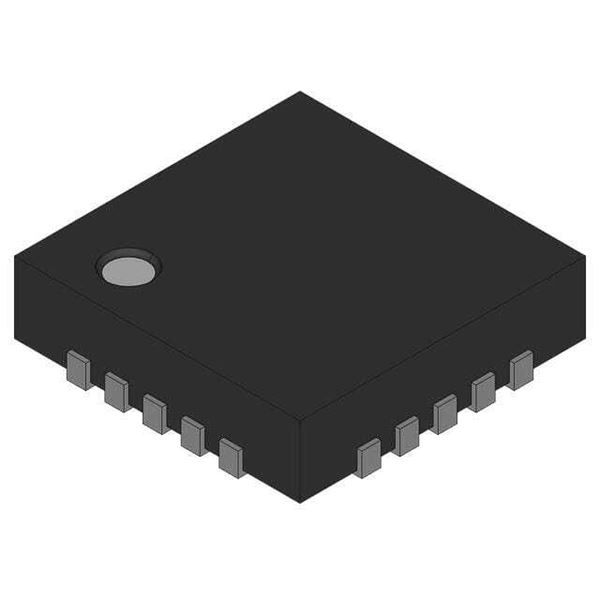

TPA2012D2RTJR

SKU: 64682

Manufacturer: Texas Instruments

Audio Amp Speaker 2-CH Stereo 2.1W Class-D 20-Pin WQFN EP T/R

69730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.14%@8Ohm@1W
Output Signal Type	Differential
Output Type	2-Channel Stereo
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	9@5.5V
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	2.1x2@4Ohm
Maximum Power Dissipation (mW)	5200
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	QFN
Original Package	WQFN EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	20
