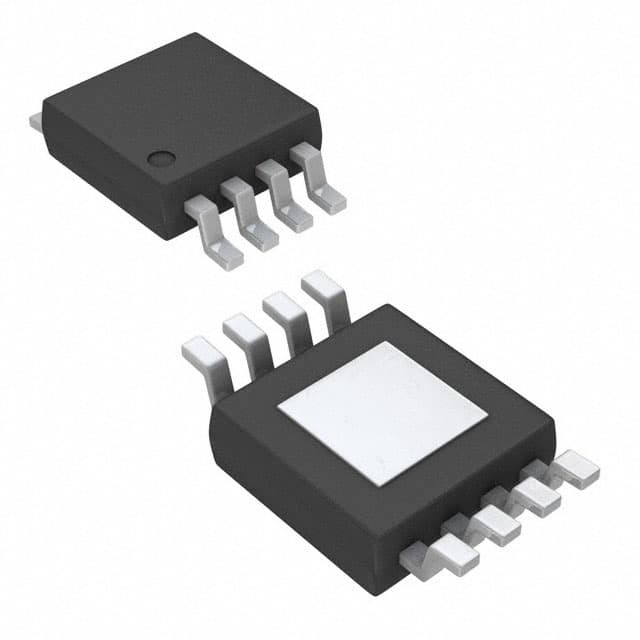

TPA0211DGNR

SKU: 15185

Manufacturer: Texas Instruments

Audio Amp Headphone/Speaker 1-CH Mono 2W Class-AB 8-Pin HVSSOP EP T/R

10770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Headphone/Speaker
Amplifier Type	Class-AB
THDN	0.2%@4Ohm@1.5W
Output Signal Type	Differential
Output Type	1-Channel Mono
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	6@5V
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	0.092x1@32Ohm
Maximum Power Dissipation (mW)	2140
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
