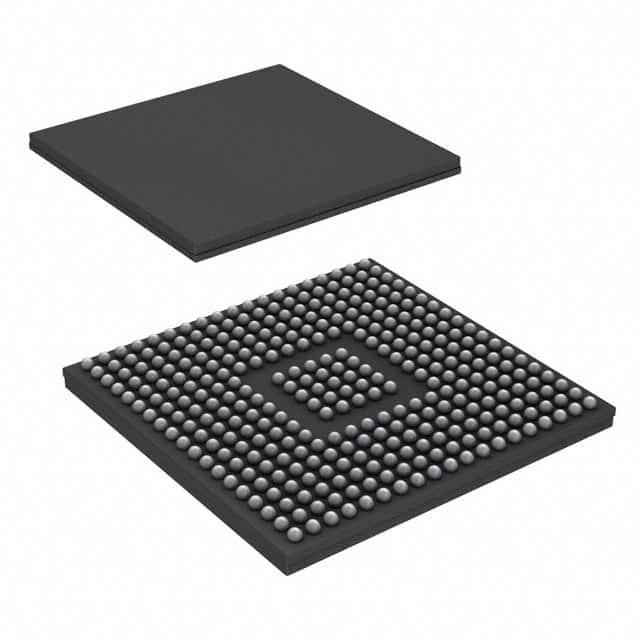

TMS5701227CZWTQQ1

SKU: 17025

Manufacturer: Texas Instruments

MCU 16-bit/32-bit ARM Cortex R4F RISC 1280KB Flash 1.2V Automotive 337-Pin NFBGA

3270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Yes
Family Name	Hercules TMS570
Instruction Set Architecture	RISC
Device Core	ARM Cortex R4F
Core Architecture	ARM
Maximum CPU Frequency (MHz)	180
Maximum Clock Rate (MHz)	180
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1280KB
RAM Size	192KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/SPI/UART
Number of I/Os	101
No. of Timers	2
PWM	7
Number of ADCs	Dual
ADC Channels	16/16
ADC Resolution (bit)	12/12
USART	0
UART	2
USB	0
SPI	2
I2C	1
I2S	0
CAN	3
Ethernet	1
Watchdog	1
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.14
Typical Operating Supply Voltage (V)	1.2
Operating Supply Voltage-Max (V)	1.32
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Original Package	NFBGA
Pin Count	337
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	16.1(Max)
Package Width	16.1(Max)
PCB changed	337
