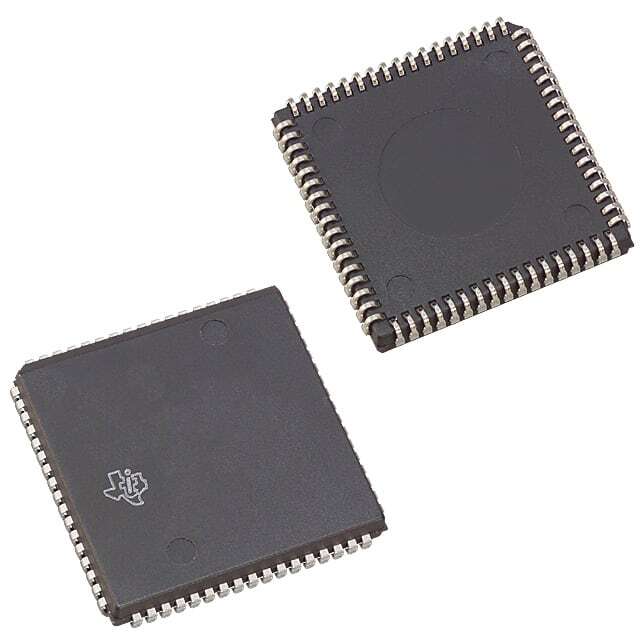

TMS370C756AFNT

SKU: 99972

Manufacturer: Texas Instruments

MCU 8-bit TMS370 CISC 16KB EPROM 5V Automotive 68-Pin PLCC

30 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Obsolete
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	TMS370
Instruction Set Architecture	CISC
Device Core	TMS370
Core Architecture	TMS370
Maximum CPU Frequency (MHz)	5
Maximum Clock Rate (MHz)	5
Data Bus Width (bit)	8
Program Memory Type	EPROM
Program Memory Size	16KB
RAM Size	512B
Maximum Expanded Memory Size	112KB
Programmability	Yes
Interface Type	SCI/SPI
Number of I/Os	44
No. of Timers	2
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	8
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Pin Count	68
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	4.57(Max) - 0.51(Min)
Package Length	24.33(Max)
Package Width	24.33(Max)
PCB changed	68
