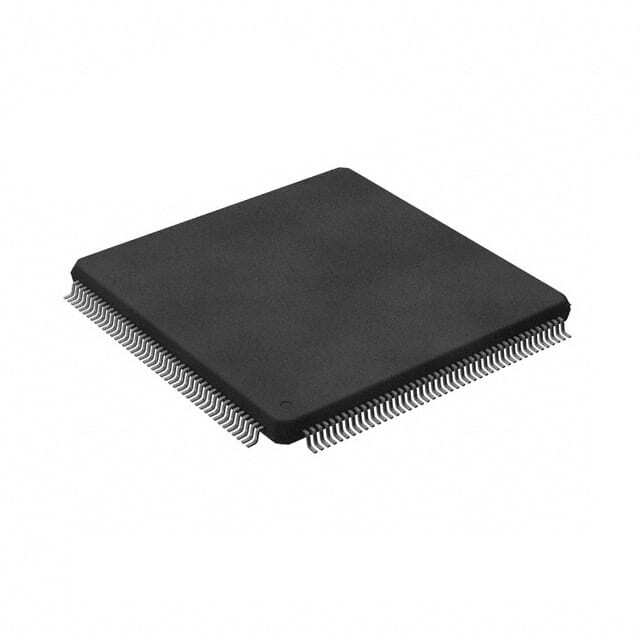

TMS320F2812PGFA

SKU: 15179

Manufacturer: Texas Instruments

DSP Fixed-Point 32bit 150MHz 150MIPS 176-Pin LQFP Tray

10950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	TMS320F281x
Instruction Set Architecture	Harvard
Device Core	C28x
Core Architecture	C28x
Numeric and Arithmetic Format	Fixed-Point
Data Bus Width (bit)	32
Device Million Instructions per Second (MIPS)	150
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	36KB
Programmability	Yes
Interface Type	CAN/SPI/UART
Number of I/Os	56
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	12
Device Input Clock Speed (MHz)	150
USART	0
UART	2
USB	0
SPI	1
I2C	0
I2S	0
CAN	1
Ethernet	0
Operating Supply Voltage-Min (V)	1.81
Typical Operating Supply Voltage (V)	1.9
Operating Supply Voltage-Max (V)	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Pin Count	176
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	24.2(Max)
Package Width	24.2(Max)
PCB changed	176
