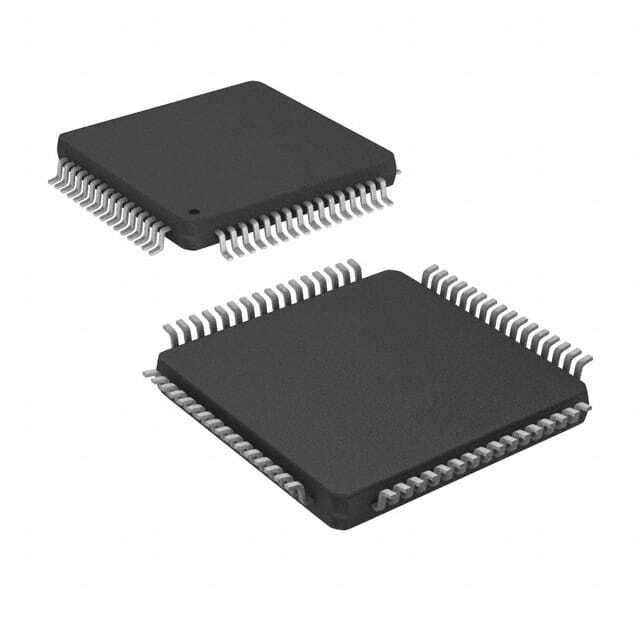

TMS320F28035PAGT

SKU: 29300

Manufacturer: Texas Instruments

MCU 32-bit C28x RISC 128KB Flash 1.8V/3.3V 64-Pin TQFP Tray

4770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	Piccolo F2803x
Instruction Set Architecture	RISC
Device Core	C28x
Core Architecture	C28x
Maximum CPU Frequency (MHz)	60
Maximum Clock Rate (MHz)	60
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	10KB
Programmability	Yes
Process Technology	CMOS
Interface Type	CAN/I2C/SPI/UART
Number of I/Os	33
No. of Timers	3
Timers Resolution (bit)	32/32/32
PWM	1
Number of ADCs	Single
ADC Channels	14
ADC Resolution (bit)	12
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.995
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Pin Count	64
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10.2(Max)
Package Width	10.2(Max)
PCB changed	64
