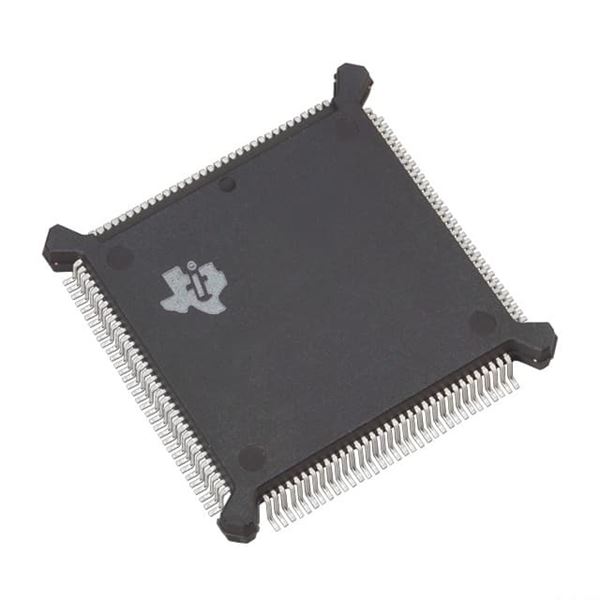

TMS320F240PQ

SKU: 85835

Manufacturer: Texas Instruments

DSP Fixed-Point 16bit 20MHz 20MIPS 132-Pin BQFP

30 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Obsolete
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	TMS320
Instruction Set Architecture	Advanced Harvard
Device Core	C2xx
Core Architecture	C28x
Numeric and Arithmetic Format	Fixed-Point
Data Bus Width (bit)	16
Device Million Instructions per Second (MIPS)	20
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	1088B
Programmability	Yes
Interface Type	SCI/SPI
Number of I/Os	28
Number of ADCs	Dual
ADC Resolution (bit)	10/10
Device Input Clock Speed (MHz)	20
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	0
Operating Temperature-Max	70
Pin Count	132
Standard Package Method	QFP
Original Package	BQFP
Terminal Form	Surface Mount
Package Height	3.81(Max)
Package Length	28.25(Max)
Package Width	28.25(Max)
PCB changed	132
