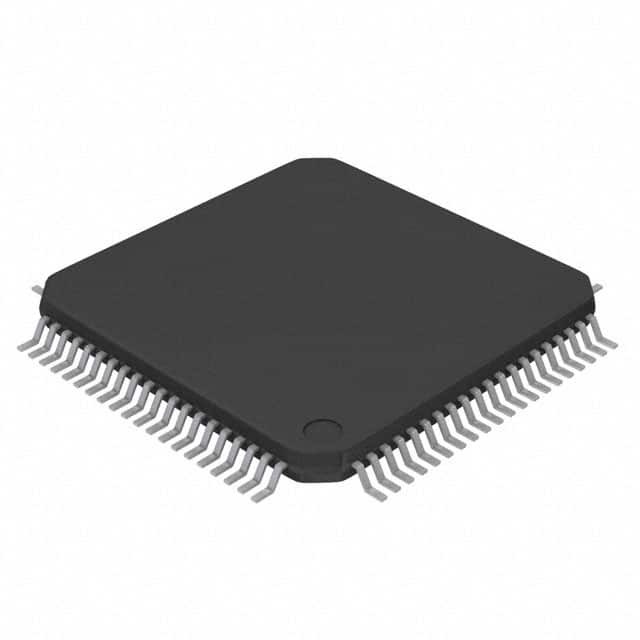

TMDS341PFC

SKU: 135414

Manufacturer: Texas Instruments

Analog Switch Single 3:1 80-Pin TQFP Tray

370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991B1
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Analog Switch
Number of Channels per Chip	1
Number of Inputs per Chip	3
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Maximum Data Rate (Mbps)	1650
Maximum Propagation Delay Bus to Bus (ns)	6
Maximum Turn-On Time (ns)	0.8
Maximum Turn-Off Time (ns)	0.8
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Typical Supply Current (mA)	190@3.3V
Maximum Supply Current (mA)	230@3.3V
Maximum On Resistance (Ohm)	50
Maximum On Resistance Range (Ohm)	45 to 60
Propagation Delay Test Condition (pF)	10
Power Supply Type	Single
Maximum Power Dissipation (mW)	1342
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tray
Pin Count	80
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12.2(Max)
Package Width	12.2(Max)
PCB changed	80
