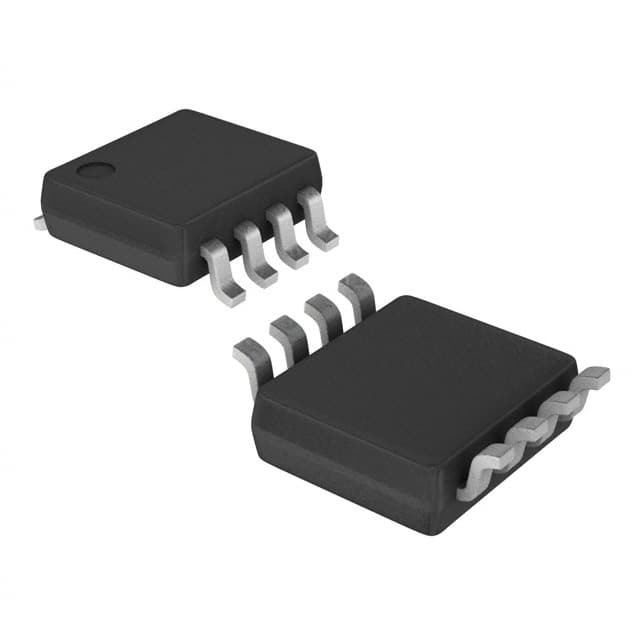

TLV7256IDDUR

SKU: 121239

Manufacturer: Texas Instruments

Comparator Dual 5V 8-Pin VSSOP T/R

2520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	General Purpose Comparator
Number of Channels per Chip	2
Rail to Rail	No
Process Technology	CMOS
Typical CMRR (dB)	65
Typical Response Time (us)	0.06
Typical Response Time Range (us)	0.05 to 0.5
Maximum Propagation Delay Time (ns)	680(Typ)
Output Type	Push-Pull
Operating Supply Voltage-Max (V)	5
Maximum Input Offset Voltage (mV)	7@5V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5
Typical Voltage Gain (dB)	88
Typical Voltage Gain Range (dB)	70 to 90
Maximum Input Bias Current (uA)	0.000004(Typ)@5V
Maximum Supply Current (mA)	0.06@5V
Typical Output Current (mA)	35@5V
Maximum Power Dissipation (mW)	200
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	8
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	2.1(Max)
Package Width	2.4(Max)
PCB changed	8
