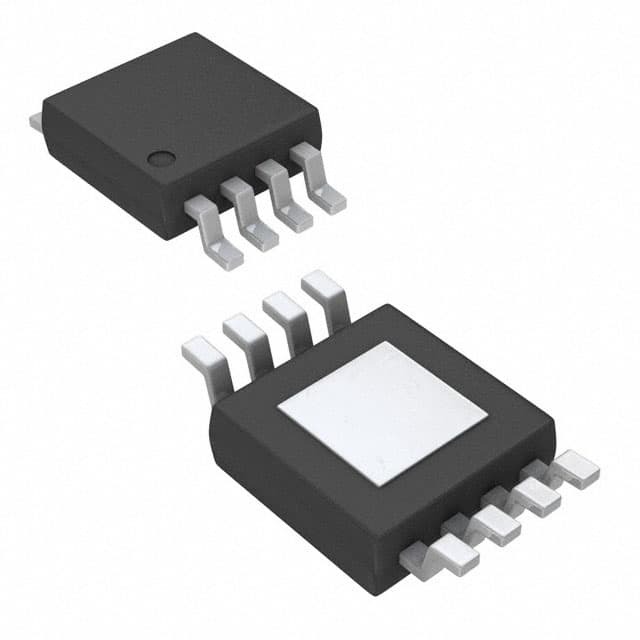

TLV4111IDGNR

SKU: 85814

Manufacturer: Texas Instruments

Op Amp Single High Output Drive Amplifier R-R O/P 6V 8-Pin HVSSOP EP T/R

26980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	High Output Drive Amplifier
Manufacturer Type	High Output Drive Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	3.5@5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	6
Maximum Input Offset Current (uA)	0.000025@5V
Maximum Input Bias Current (uA)	0.00005@5V
Maximum Supply Current (mA)	1@5V
Typical Output Current (mA)	320@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	2370
Typical Slew Rate (V/us)	1.57@5V
Typical Input Noise Voltage Density (nV/rtHz)	55@5V
Typical Voltage Gain (dB)	110
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.00031@5V
Minimum PSRR (dB)	70
Minimum CMRR (dB)	68(Typ)
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	2.7
Typical Settling Time (ns)	1300
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
